Products / Pain Management

Straight Sharp RF Cannula

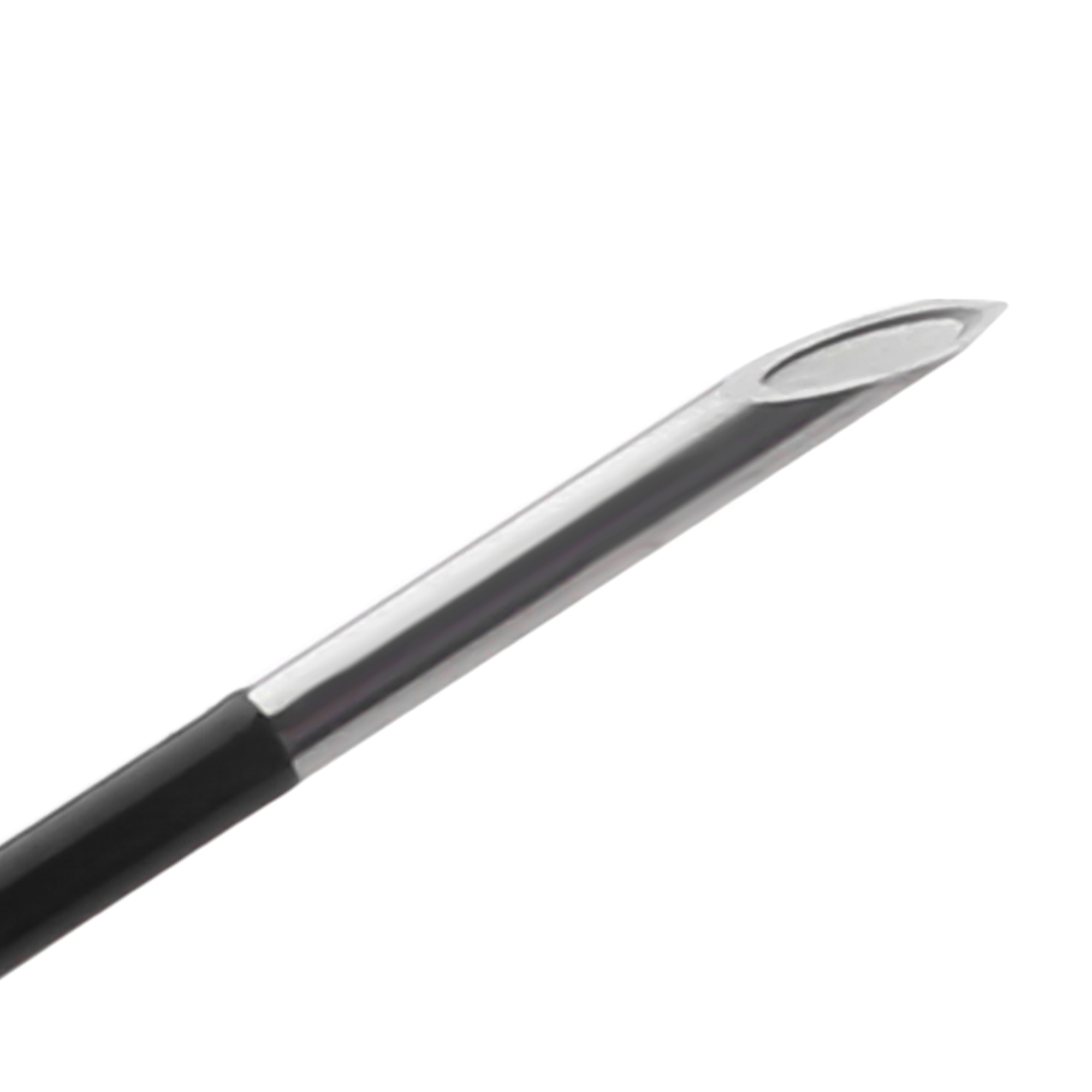

The straight sharp tip is designed for puncture along a straight access path.

Product overview

Choose the tip structure for your access requirements

For RF pain-management procedures involving conditions such as trigeminal neuralgia or intervertebral disc herniation. The electrode and cannula connect to an RF generator. RF energy acts on target nerve tissue for thermocoagulation or neuromodulation. The system can also ablate nucleus pulposus tissue in intervertebral discs. Adapter cables support connections to different generator brands. The straight sharp tip is designed for puncture along a straight access path.

Compare the gauge, effective length and active tip length below. Include the model number when you inquire.

Inquire About This Product →

Models & dimensions

Product specifications

Model	Gauge	Effective length	Active tip length	Color code	MOQ
RC22505S-BM	22G	50 mm	5 mm	Black	3000pcs
RC22510S-BM	22G	50 mm	10 mm	Black	3000pcs
RC221005S-BM	22G	100 mm	5 mm	Black	3000pcs
RC221010S-BM	22G	100 mm	10 mm	Black	3000pcs
RC221505S-BM	22G	150 mm	5 mm	Black	3000pcs
RC221510S-BM	22G	150 mm	10 mm	Black	3000pcs
RC20505S-BM	20G	50 mm	5 mm	Yellow	3000pcs
RC20510S-BM	20G	50 mm	10 mm	Yellow	3000pcs
RC201005S-BM	20G	100 mm	5 mm	Yellow	3000pcs
RC201010S-BM	20G	100 mm	10 mm	Yellow	3000pcs
RC201505S-BM	20G	150 mm	5 mm	Yellow	3000pcs
RC201510S-BM	20G	150 mm	10 mm	Yellow	3000pcs
RC181005S-BM	18G	100 mm	5 mm	Pink	3000pcs
RC181010S-BM	18G	100 mm	10 mm	Pink	3000pcs
RC181505S-BM	18G	150 mm	5 mm	Pink	3000pcs
RC181510S-BM	18G	150 mm	10 mm	Pink	3000pcs
RC161010S-BM	16G	100 mm	10 mm	White	3000pcs
RC161510S-BM	16G	150 mm	10 mm	White	3000pcs
