Single-use RF Electrode
Used with an RF cannula and an RF generator in pain-management procedures. Adapter cables support connections to different generator brands.
Product overview
RF electrode configurations
For RF pain-management procedures involving conditions such as trigeminal neuralgia or intervertebral disc herniation. The electrode and cannula connect to an RF generator. RF energy acts on target nerve tissue for thermocoagulation or neuromodulation. The system can also ablate nucleus pulposus tissue in intervertebral discs. Adapter cables support connections to different generator brands. The electrode is used with an RF cannula of the required configuration. See the model-specific compatibility details below.
Compare the gauge, effective length and connection requirements below. Include the model number when you inquire.
Inquire About This Product →Models & dimensions
Product specifications
| Model | Gauge | Effective length | Color code | MOQ |
|---|---|---|---|---|
| RE2750-BM | 27G | 50 mm | Green | 500pcs |
| RE27100-BM | 27G | 100 mm | Blue | 500pcs |
| RE27150-BM | 27G | 150 mm | Yellow | 500pcs |
| RE27100B-BM | 27G | 100 mm | Blue | 500pcs |
| RE27150B-BM | 27G | 150 mm | Yellow | 500pcs |
Electrode and cannula compatibility
RE2750-BM, RE27100-BM and RE27150-BM are used with RF cannulas of the same effective length.
RE27100B-BM: RC201010L-BM or RC181010L-BM only.
RE27150B-BM: RC201510L-BM or RC181510L-BM only.

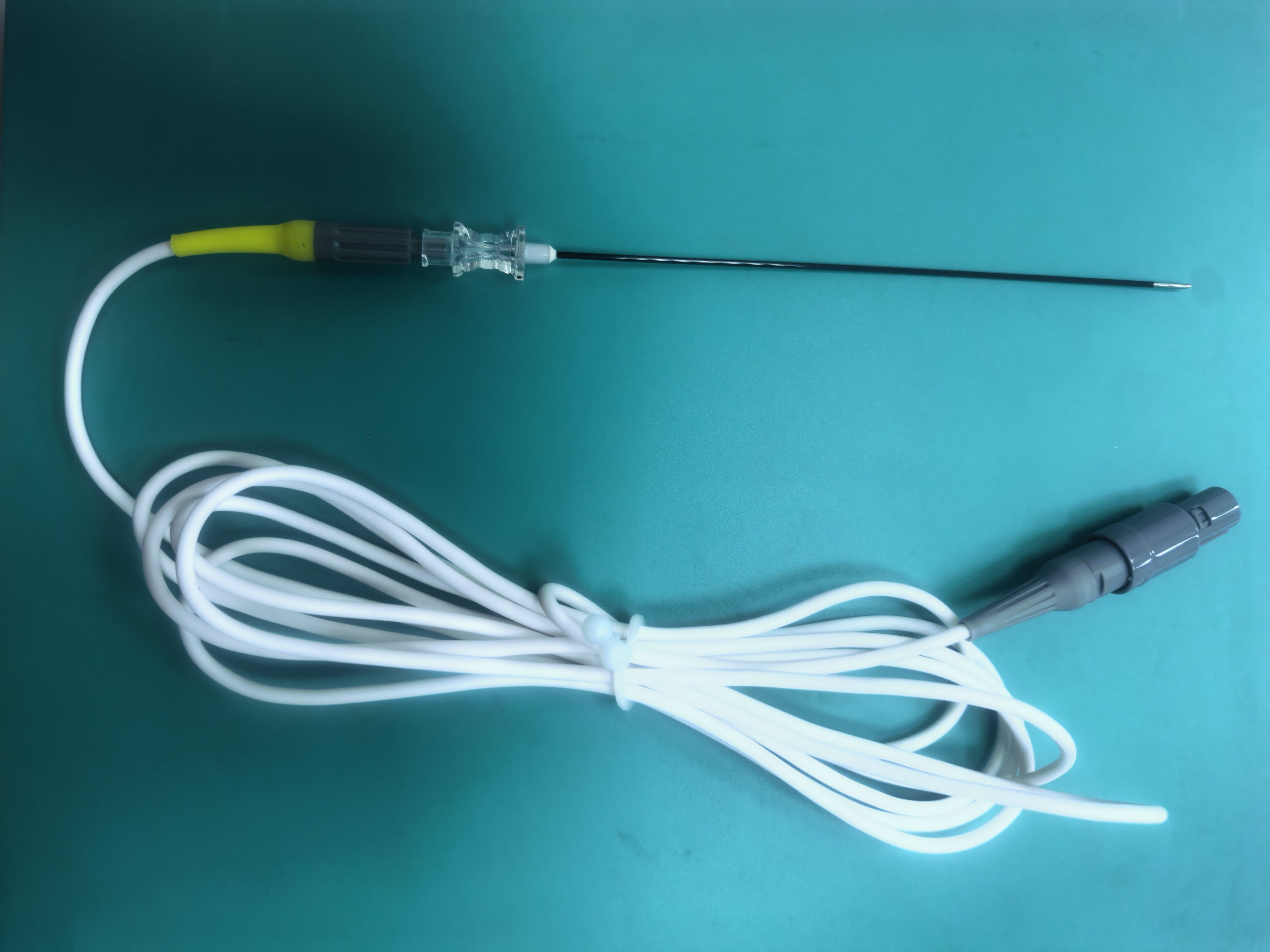

Supplementary electrode photograph
Working end and connector
Working end
The stainless-steel tip and black insulated section form the working end.
Connection end
The gray plug connects to the RF generator. In the connected system, the electrode tip is used for temperature and impedance measurement and for stimulation-current and RF output.
The model shown in this photograph and the product range covered by this functional description are pending confirmation. This photograph is not assigned to every electrode model.
