Curved Sharp RF Cannula

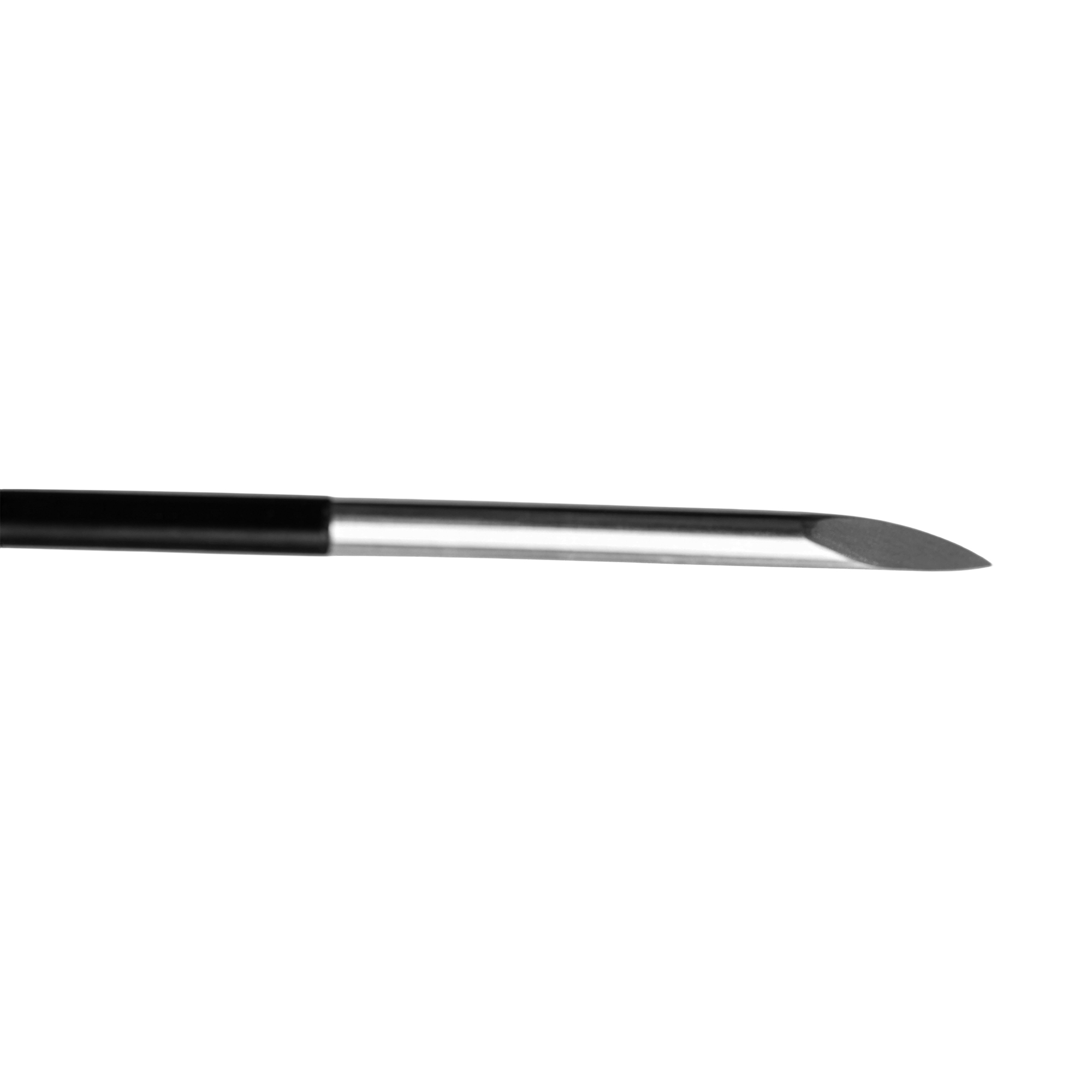

The curved sharp tip supports target access along curved or more complex paths.

Product overview

Choose the tip structure for your access requirements

For RF pain-management procedures involving conditions such as trigeminal neuralgia or intervertebral disc herniation. The electrode and cannula connect to an RF generator. RF energy acts on target nerve tissue for thermocoagulation or neuromodulation. The system can also ablate nucleus pulposus tissue in intervertebral discs. Adapter cables support connections to different generator brands. The curved sharp tip is designed for target access along curved or more complex paths.

Compare the gauge, effective length and active tip length below. Include the model number when you inquire.

Inquire About This Product →

Models & dimensions

Product specifications

Model	Gauge	Effective length	Active tip length	Color code	MOQ
RC22505C-BM	22G	50 mm	5 mm	Black	3000pcs
RC22510C-BM	22G	50 mm	10 mm	Black	3000pcs
RC221005C-BM	22G	100 mm	5 mm	Black	3000pcs
RC221010C-BM	22G	100 mm	10 mm	Black	3000pcs
RC221505C-BM	22G	150 mm	5 mm	Black	3000pcs
RC221510C-BM	22G	150 mm	10 mm	Black	3000pcs
RC20505C-BM	20G	50 mm	5 mm	Yellow	3000pcs
RC20510C-BM	20G	50 mm	10 mm	Yellow	3000pcs
RC201005C-BM	20G	100 mm	5 mm	Yellow	3000pcs
RC201010C-BM	20G	100 mm	10 mm	Yellow	3000pcs
RC201505C-BM	20G	150 mm	5 mm	Yellow	3000pcs
RC201510C-BM	20G	150 mm	10 mm	Yellow	3000pcs
RC181005C-BM	18G	100 mm	5 mm	Pink	3000pcs
RC181010C-BM	18G	100 mm	10 mm	Pink	3000pcs
RC181505C-BM	18G	150 mm	5 mm	Pink	3000pcs
RC181510C-BM	18G	150 mm	10 mm	Pink	3000pcs
RC161010C-BM	16G	100 mm	10 mm	White	3000pcs
RC161510C-BM	16G	150 mm	10 mm	White	3000pcs
